ExcaliDash

A self-hosted dashboard and organizer for Excalidraw with live collaboration features.

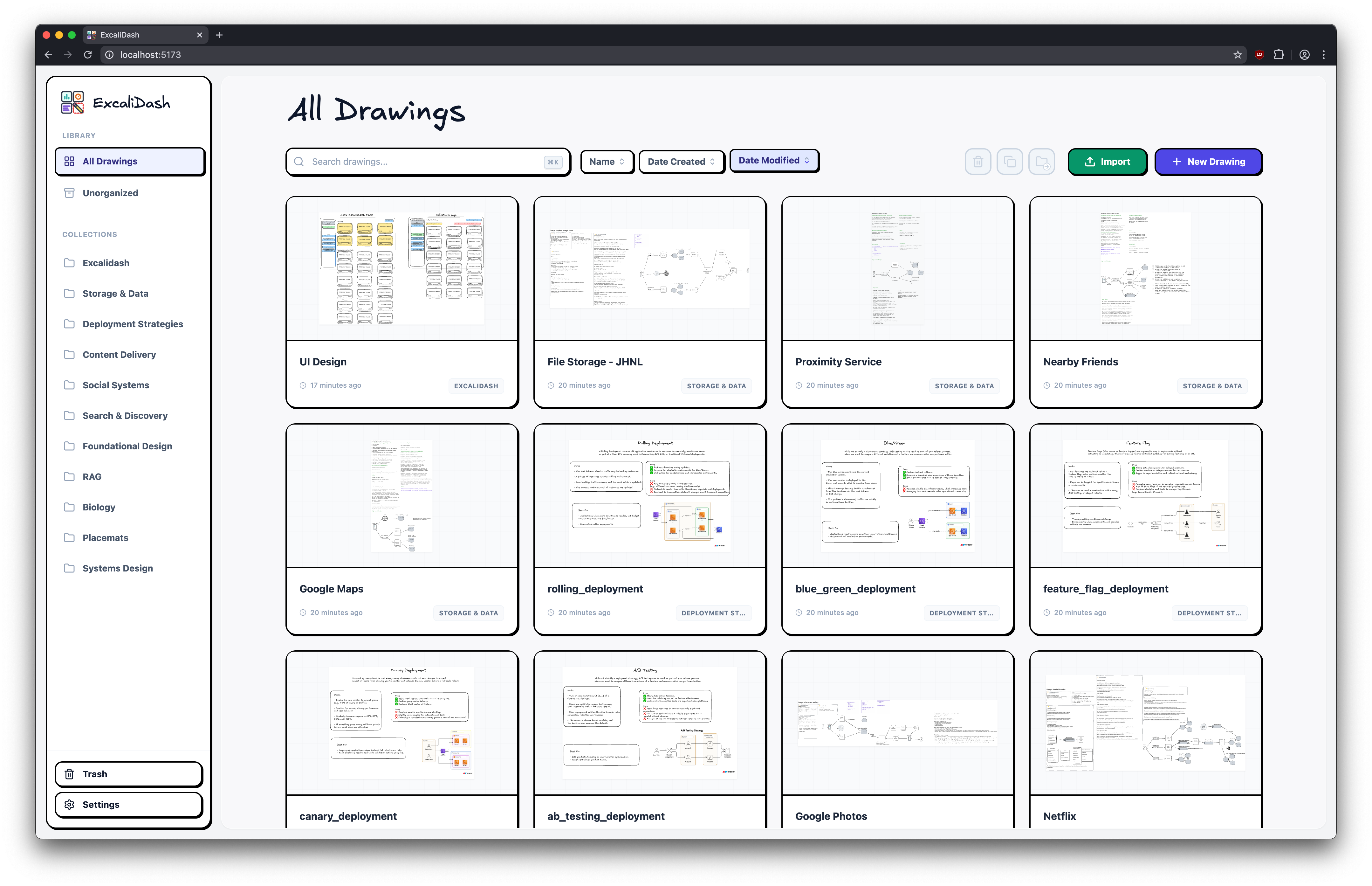

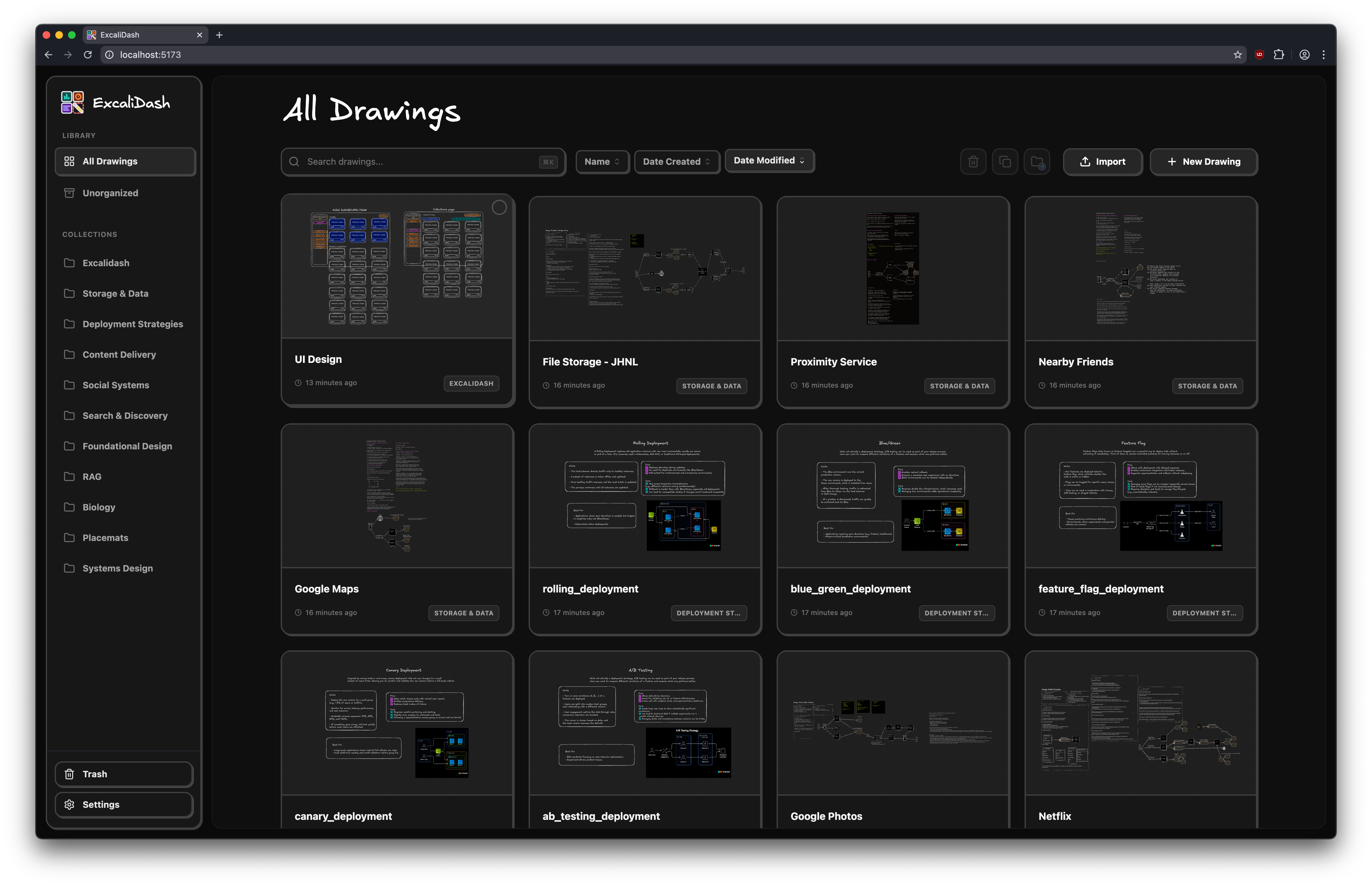

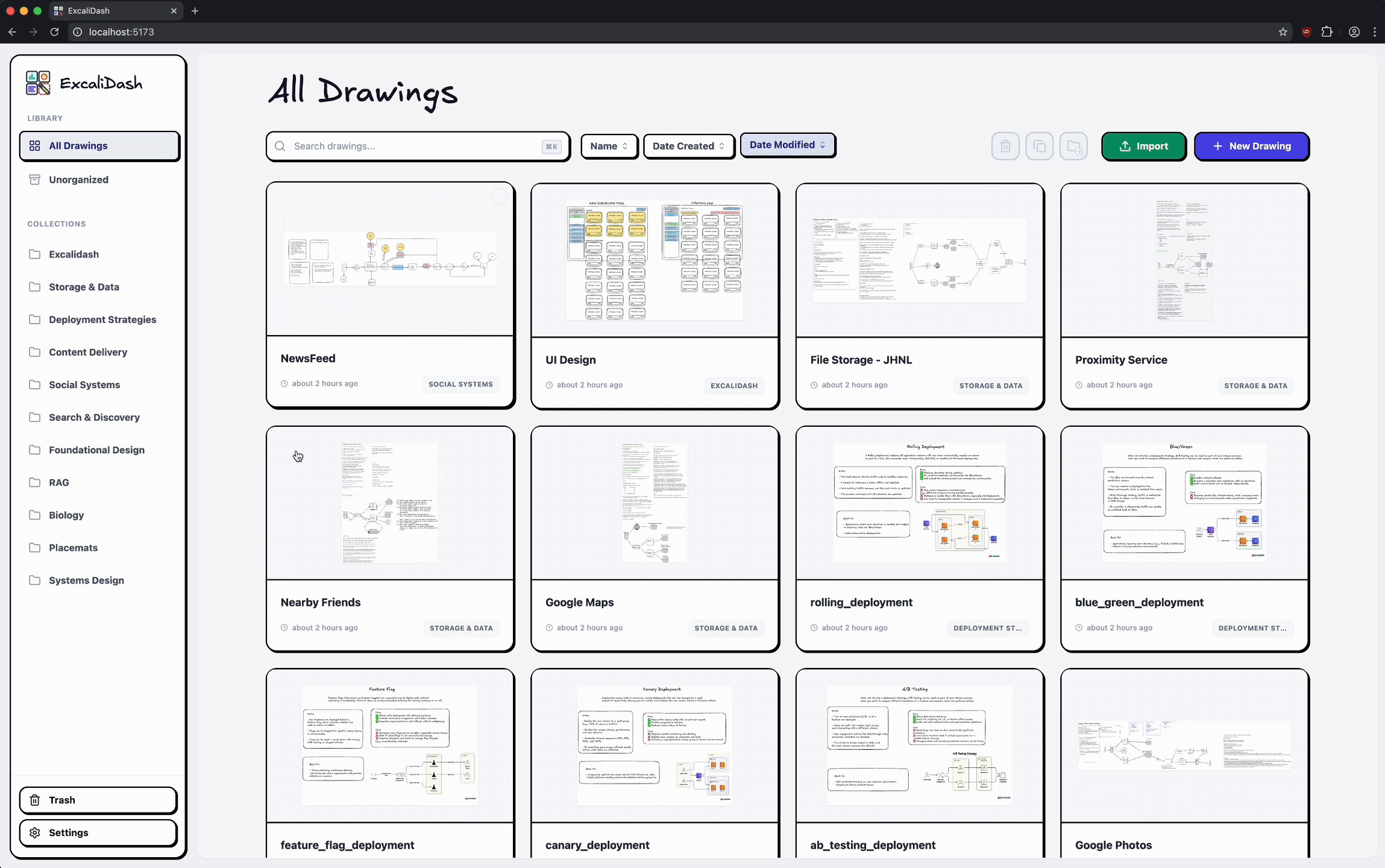

Screenshots

Table of Contents

• Screenshots
• Features
• Upgrading
• Installation
  • Docker Hub (Recommended)
  • Docker Build
  • Reverse Proxy / Traefik Setups
  • Multi-Container / Kubernetes Deployments
• Development
  • Clone the Repository
  • Frontend
  • Backend
  • Project Structure
• Credits

Features

Persistent storage for all your drawings

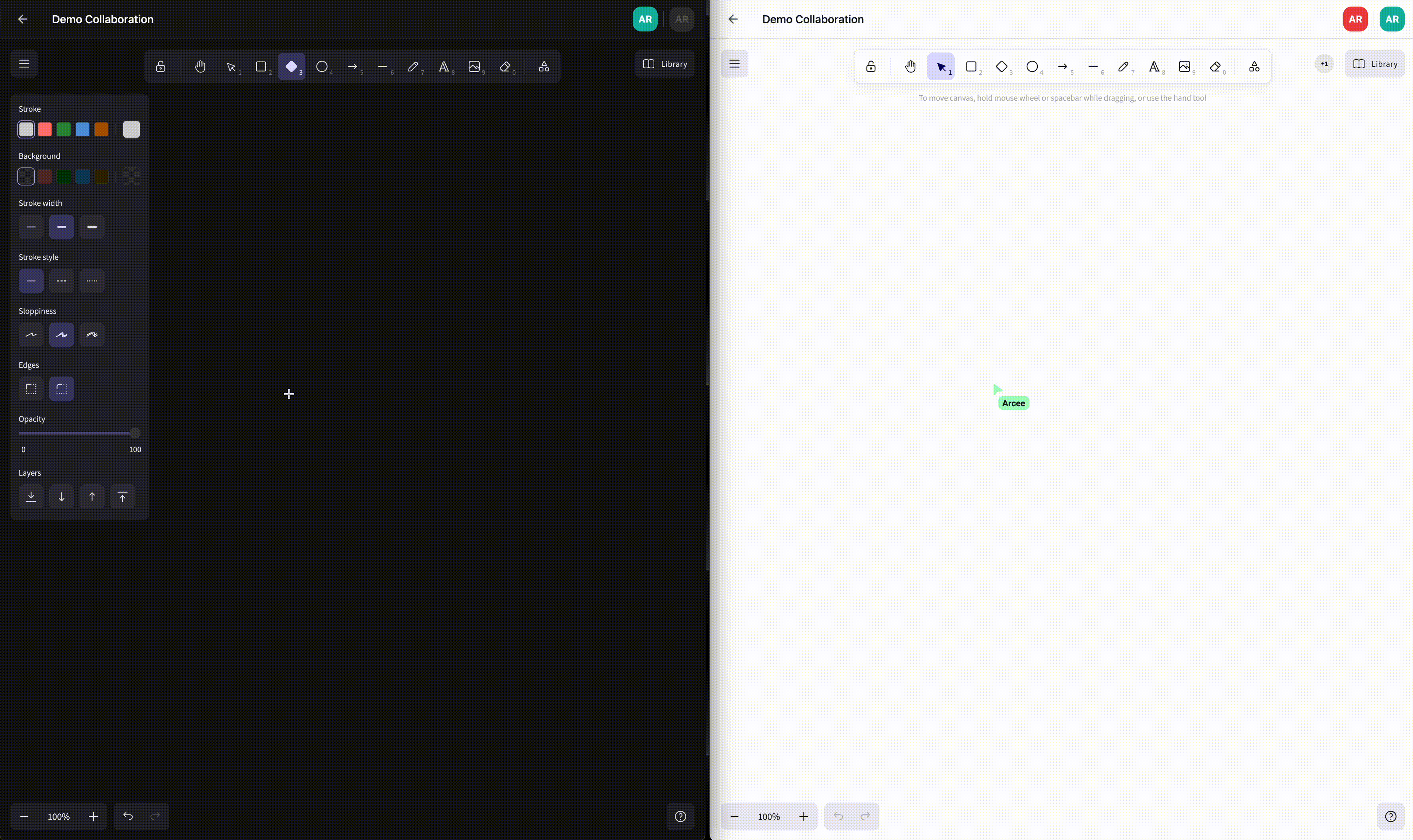

Real time collaboration

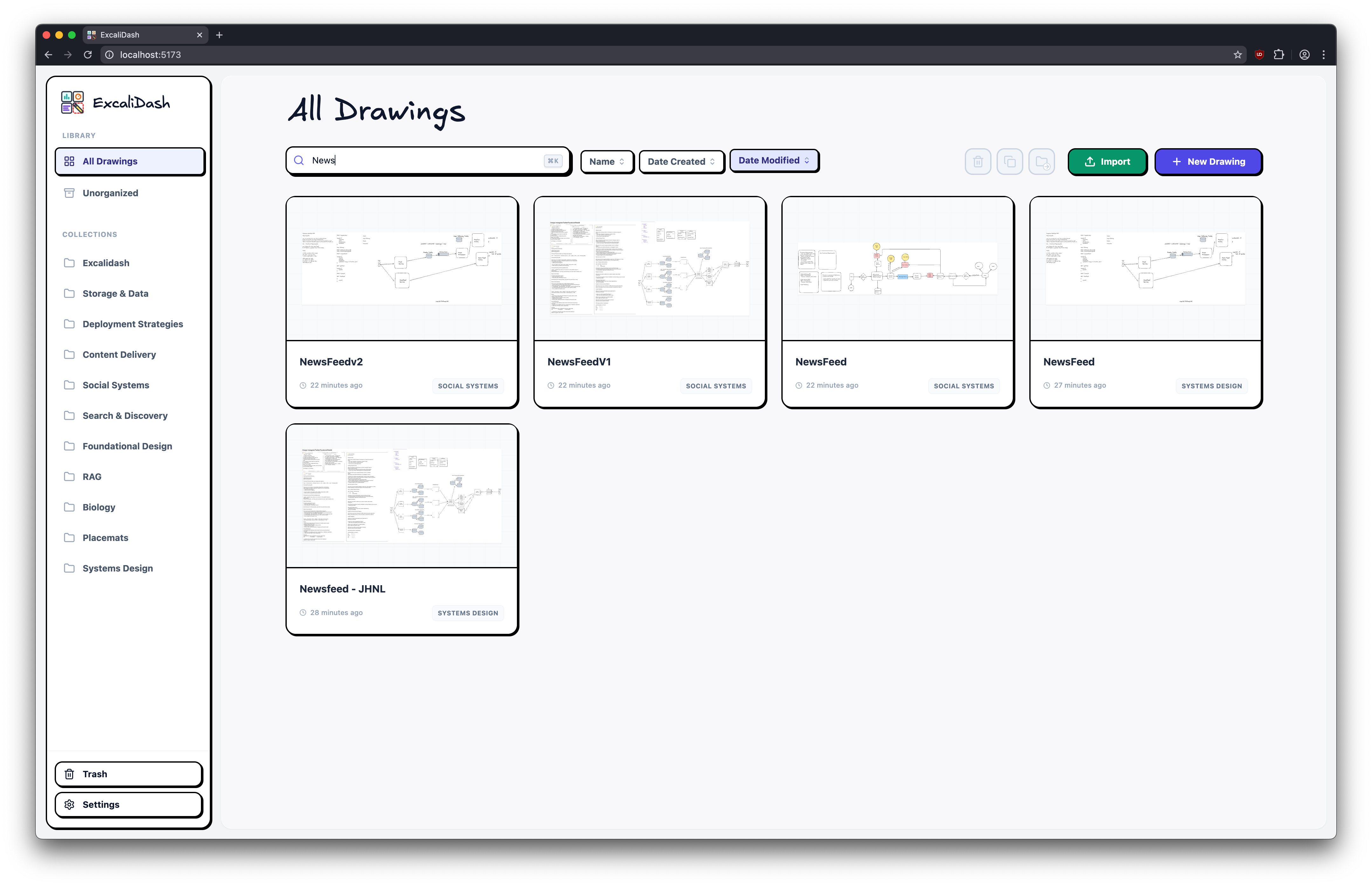

Search your drawings

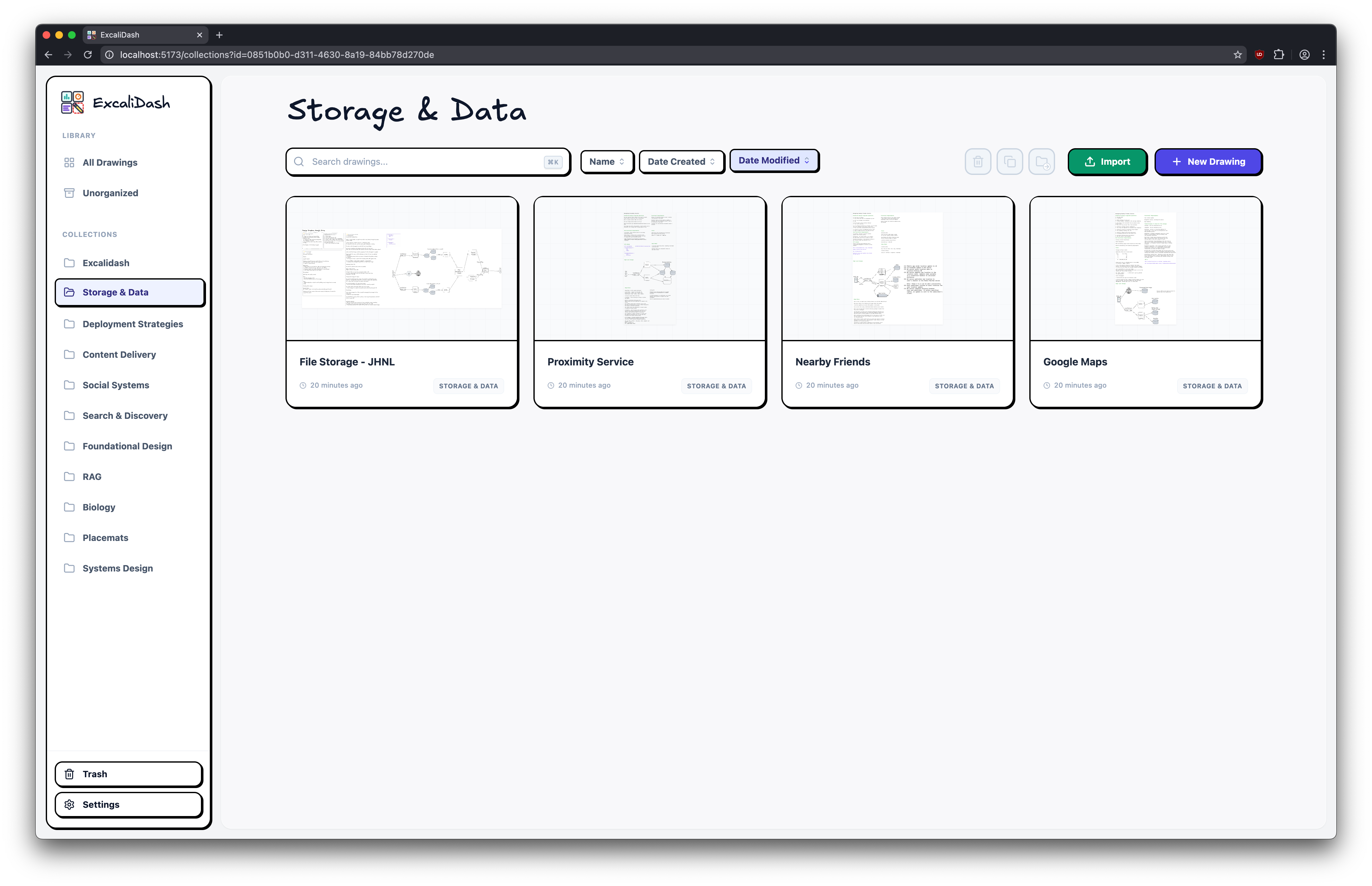

Drag and drop drawings into collections

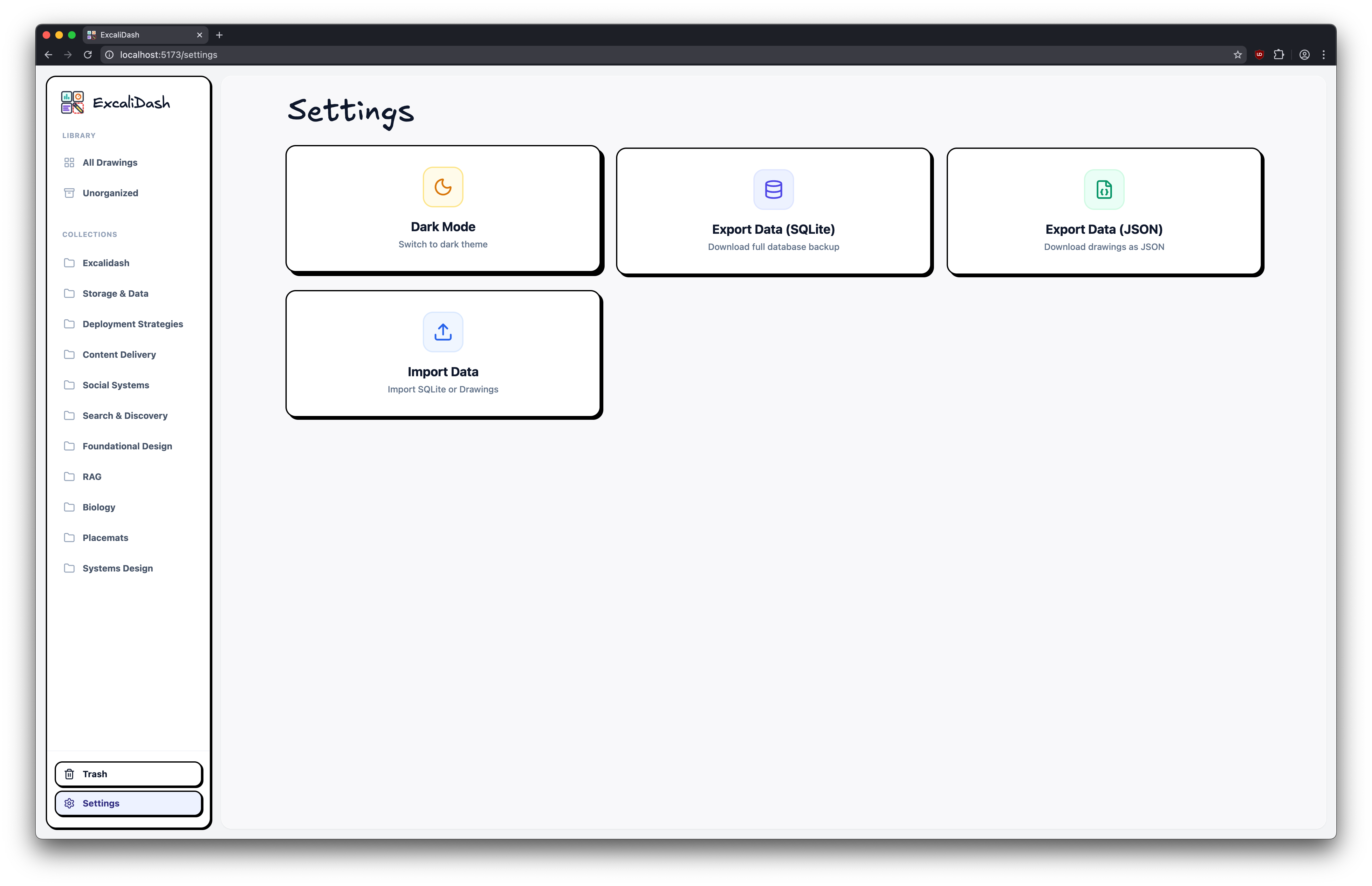

Export/import your drawings and databases for backup

Upgrading

See release notes for a specific release.

Installation

Caution

NOT for production use. While attempts have been made at hardening (XSS/dompurify, CORS, rate-limiting, sanitization), they are inadequate for public deployment. Do not expose any ports.

Caution

ExcaliDash is in BETA. Please backup your data regularly (e.g. with cron).

Docker Hub (Recommended)

Install Docker

# Download docker-compose.prod.yml
curl -OL https://raw.githubusercontent.com/ZimengXiong/ExcaliDash/refs/heads/main/docker-compose.prod.yml

# Pull images
docker compose -f docker-compose.prod.yml pull

# Run container
docker compose -f docker-compose.prod.yml up -d

# Access the frontend at localhost:6767

Docker Build

Install Docker

# Clone the repository (recommended)
git clone git@github.com:ZimengXiong/ExcaliDash.git

# or, clone with HTTPS
# git clone https://github.com/ZimengXiong/ExcaliDash.git

docker compose build
docker compose up -d

# Access the frontend at localhost:6767

Reverse Proxy / Traefik Setups (Docker)

When running ExcaliDash behind Traefik, Nginx, or another reverse proxy, configure both containers so that API + WebSocket calls resolve correctly:

• FRONTEND_URL (backend) must match the public URL that users hit (e.g. https://excalidash.example.com). This controls CORS and Socket.IO origin checks.
• BACKEND_URL (frontend) tells the Nginx container how to reach the backend from inside Docker/Kubernetes. Override it if your reverse proxy exposes the backend under a different hostname.

# docker-compose.yml example
backend:
  environment:
    - FRONTEND_URL=https://excalidash.example.com
frontend:
  environment:
    # For standard Docker Compose (default)
    # - BACKEND_URL=backend:8000
    # For Kubernetes, use the service DNS name:
    - BACKEND_URL=excalidash-backend.default.svc.cluster.local:8000

Multi-Container / Kubernetes Deployments

When running multiple backend replicas (e.g., Kubernetes, Docker Swarm, or load-balanced containers), you must set the CSRF_SECRET environment variable to the same value across all instances.

# Generate a secure secret
openssl rand -base64 32

# docker-compose.yml or k8s deployment
backend:
  environment:
    - CSRF_SECRET=your-generated-secret-here

Without this, each container generates its own ephemeral CSRF secret, causing token validation failures when requests are routed to different replicas. Single-container deployments work without this setting.

Optional Authentication

ExcaliDash supports multi-user authentication with role-based administration. The first admin user can be seeded via environment variables, or created in the UI when no users exist. Set these backend environment variables to bootstrap an admin:

# Optional (defaults to "admin")
AUTH_USERNAME=admin
# Optional (defaults to empty)
AUTH_EMAIL=admin@example.com
# Optional (if omitted, a secure random password is generated and logged)
AUTH_PASSWORD=change-me
# Recommended: keep sessions stable across restarts
AUTH_SESSION_SECRET=your-random-secret
# Optional (default: 168 hours)
AUTH_SESSION_TTL_HOURS=168
# Optional (default: 7)
AUTH_MIN_PASSWORD_LENGTH=7
# Optional (default: excalidash_auth)
AUTH_COOKIE_NAME=excalidash_auth
# Optional: lax | strict | none (use "none" for cross-site hosting)
AUTH_COOKIE_SAMESITE=lax

Once logged in, admins can manage user registration settings and user roles from the Settings page. When no admin credentials are provided via environment variables, an initial admin user is created with a randomly generated password that is logged to the console on startup.

Development

Clone the Repository

# Clone the repository (recommended)
git clone git@github.com:ZimengXiong/ExcaliDash.git

# or, clone with HTTPS
# git clone https://github.com/ZimengXiong/ExcaliDash.git

Frontend

cd ExcaliDash/frontend
npm install

# Copy environment file and customize if needed
cp .env.example .env

npm run dev

Backend

cd ExcaliDash/backend
npm install

# Copy environment file and customize if needed
cp .env.example .env

# Generate Prisma client and setup database
npx prisma generate
npx prisma db push

npm run dev

Project Structure

ExcaliDash/
├── backend/                 # Node.js + Express + Prisma
│   ├── src/
│   │   └── index.ts        # Main server file
│   ├── prisma/
│   │   ├── schema.prisma   # Database schema
│   │   └── dev.db         # SQLite database
│   └── package.json
├── frontend/               # React + TypeScript + Vite
│   ├── src/
│   │   ├── components/     # React components
│   │   ├── pages/         # Page components
│   │   ├── hooks/         # Custom hooks
│   │   └── api/           # API client
│   └── package.json
└── README.md

Credits

• Example designs from:
  • https://github.com/Prakash-sa/system-design-ultimatum/tree/main
  • https://github.com/kitsteam/excalidraw-examples/tree/main
• The Amazing work of Excalidraw developers
