ExcaliDash v0.1.8

A self-hosted dashboard and organizer for Excalidraw with live collaboration features.

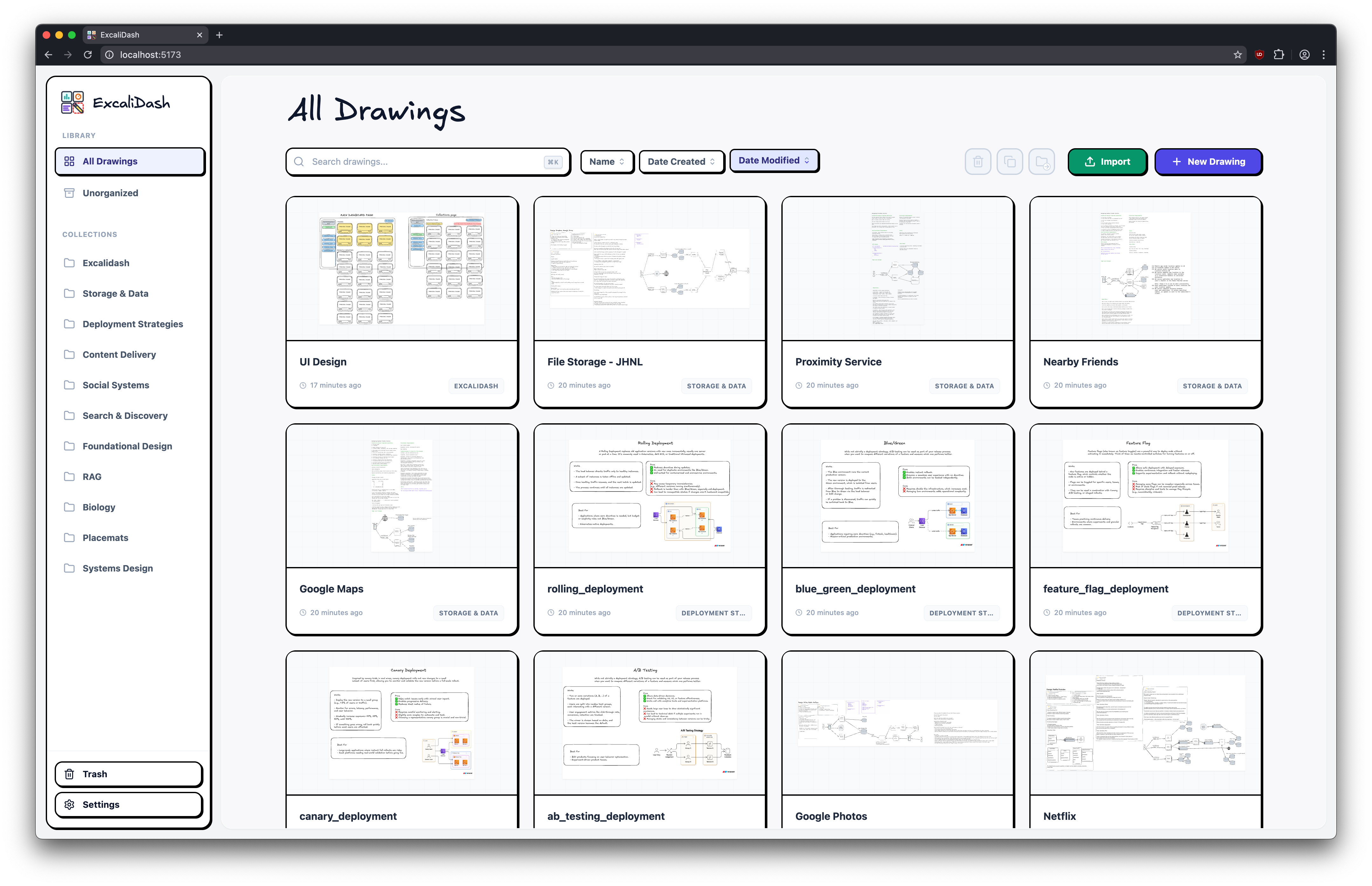

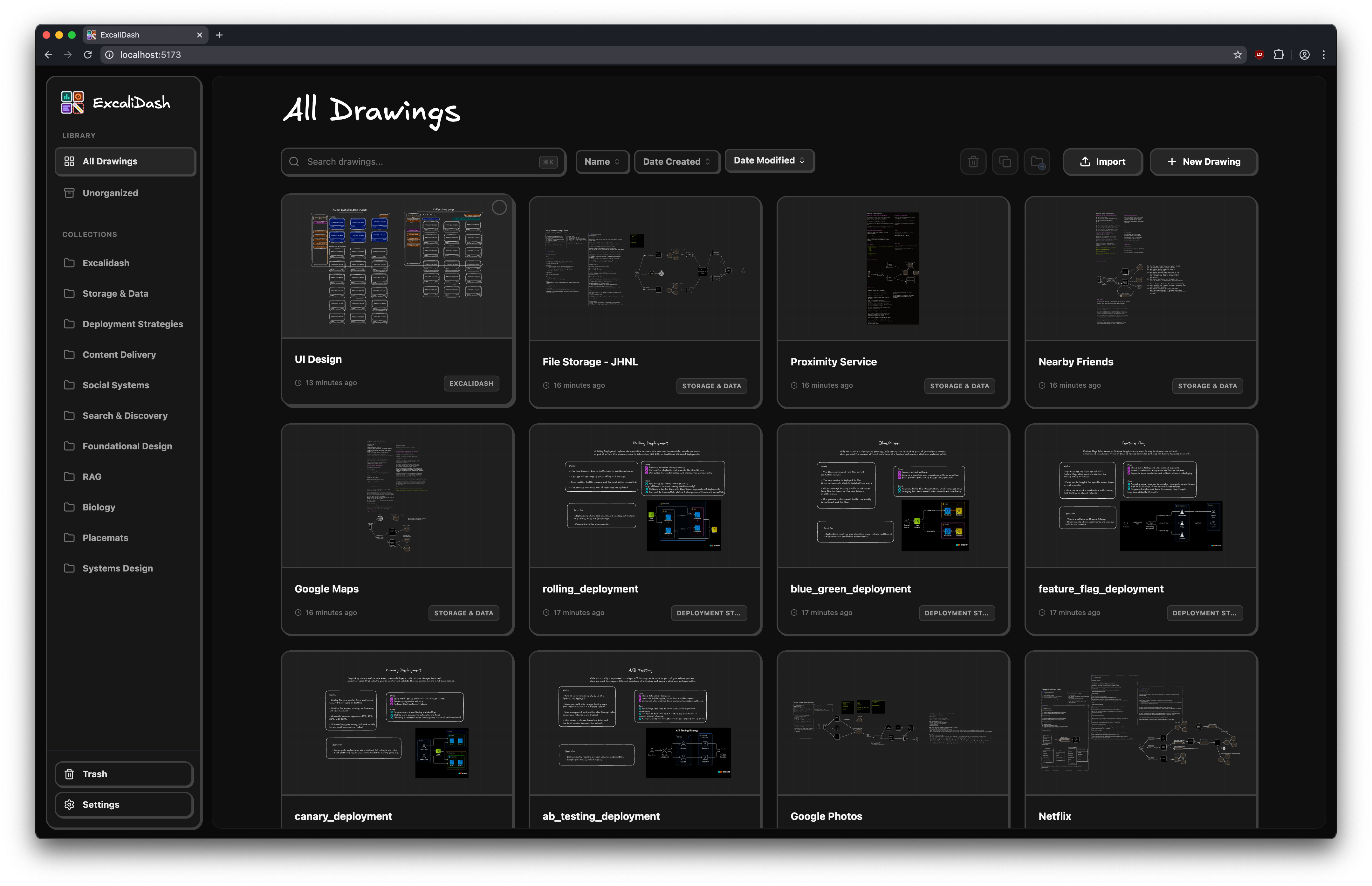

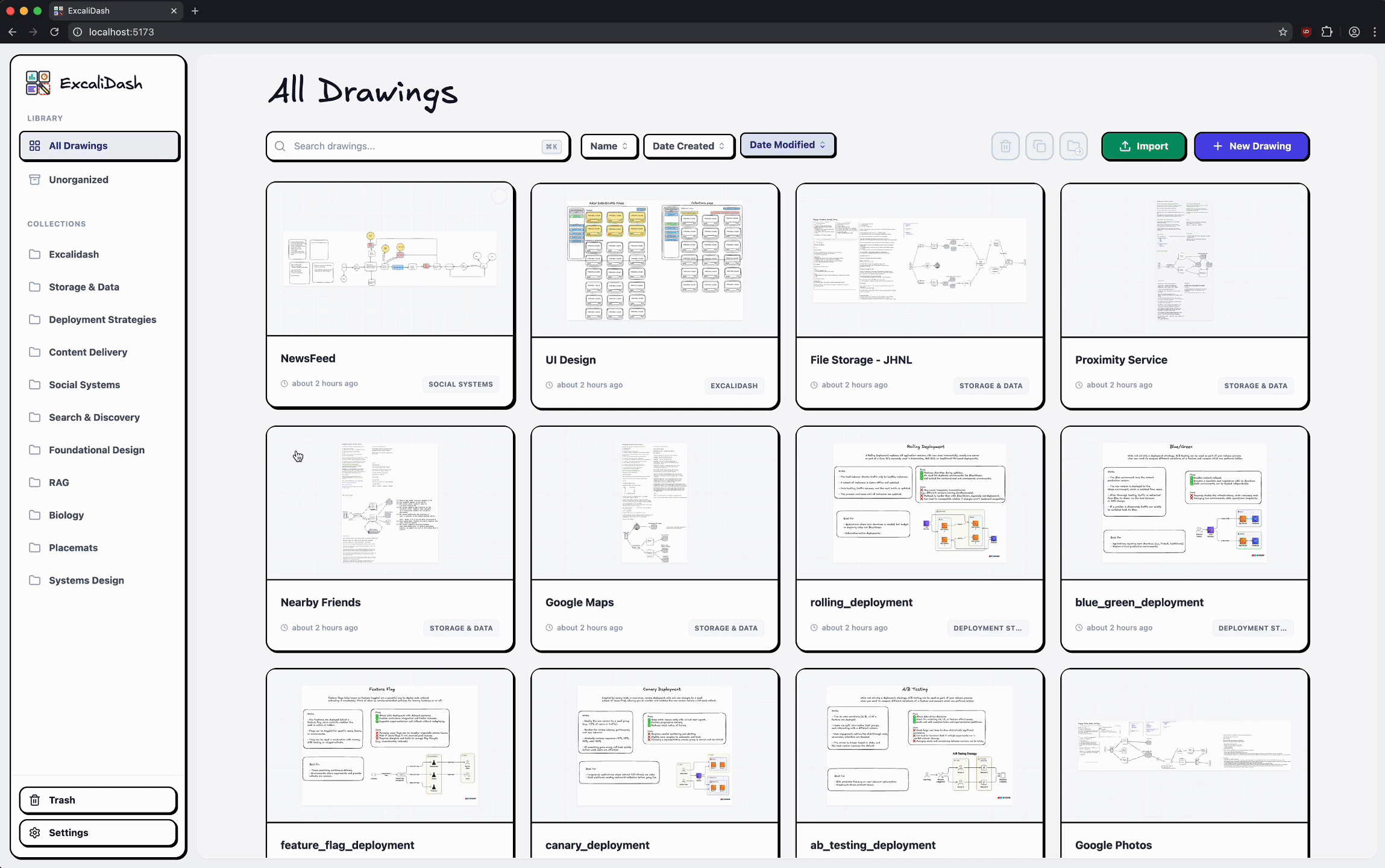

Screenshots

Table of Contents

• Screenshots
• Features
• Upgrading
• Installation
  • Docker Hub (Recommended)
  • Docker Build
  • Reverse Proxy / Traefik Setups
  • Multi-Container / Kubernetes Deployments
• Development
  • Clone the Repository
  • Frontend
  • Backend
  • Project Structure
• Credits

Features

Persistent storage for all your drawings

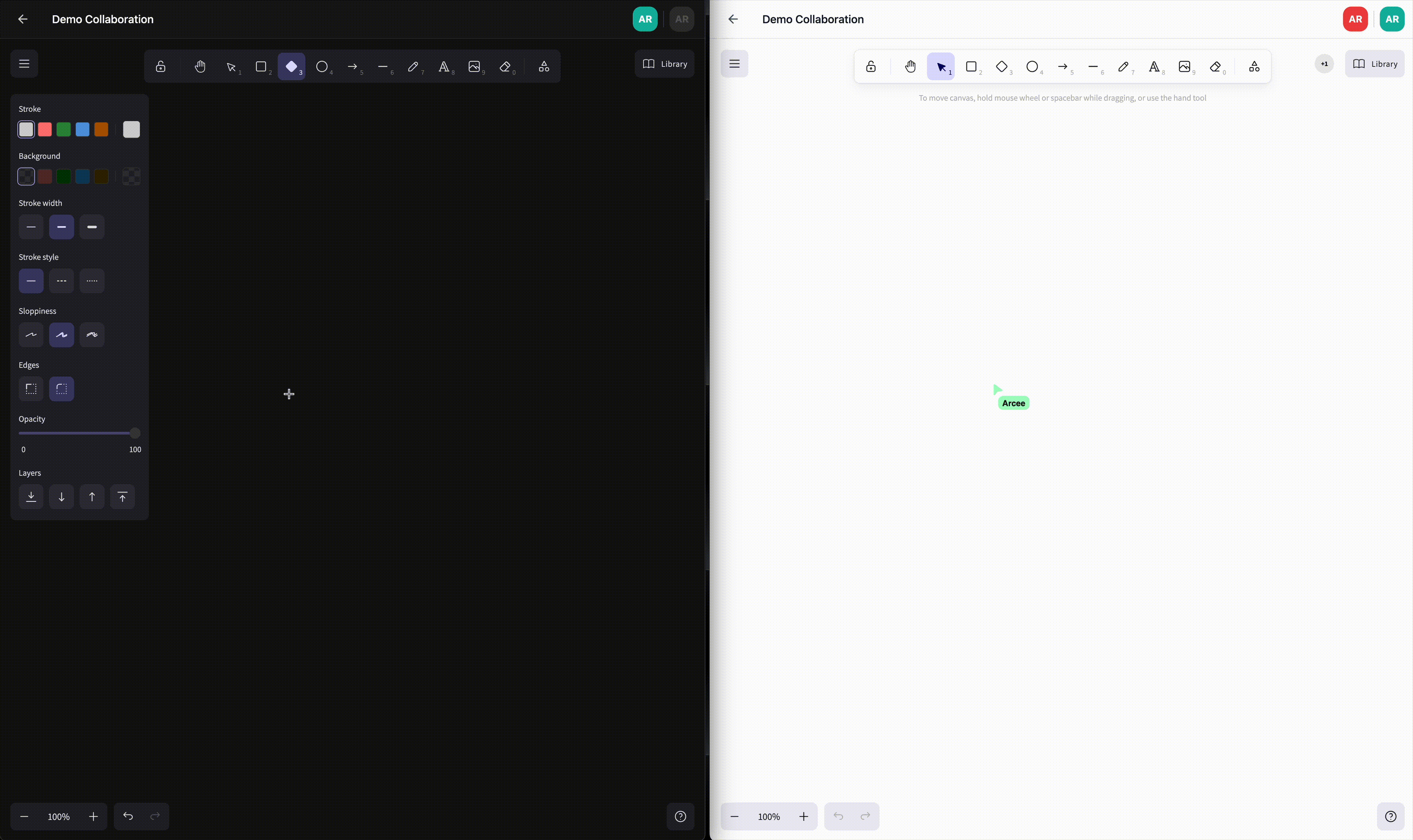

Real time collaboration

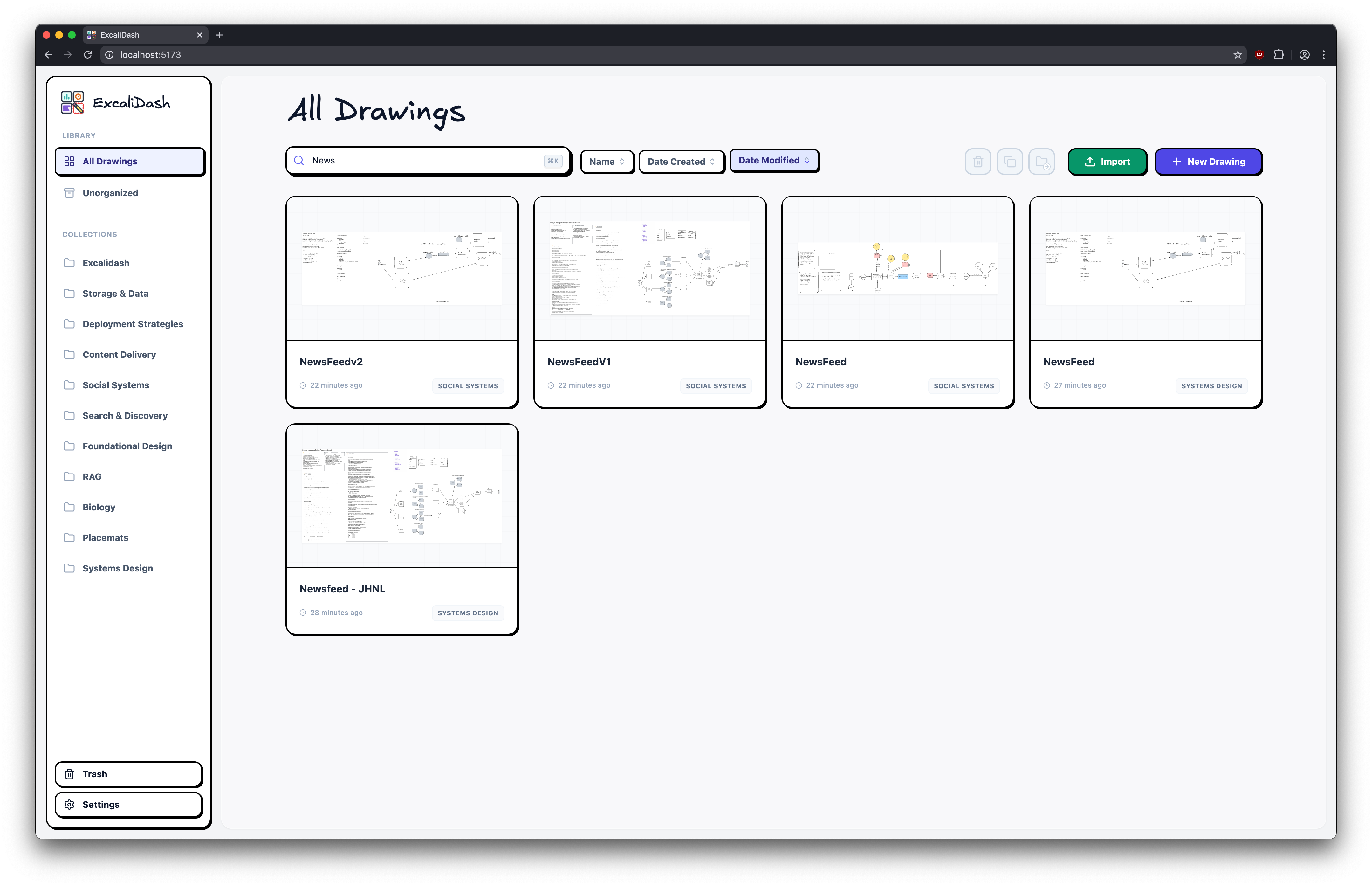

Search your drawings

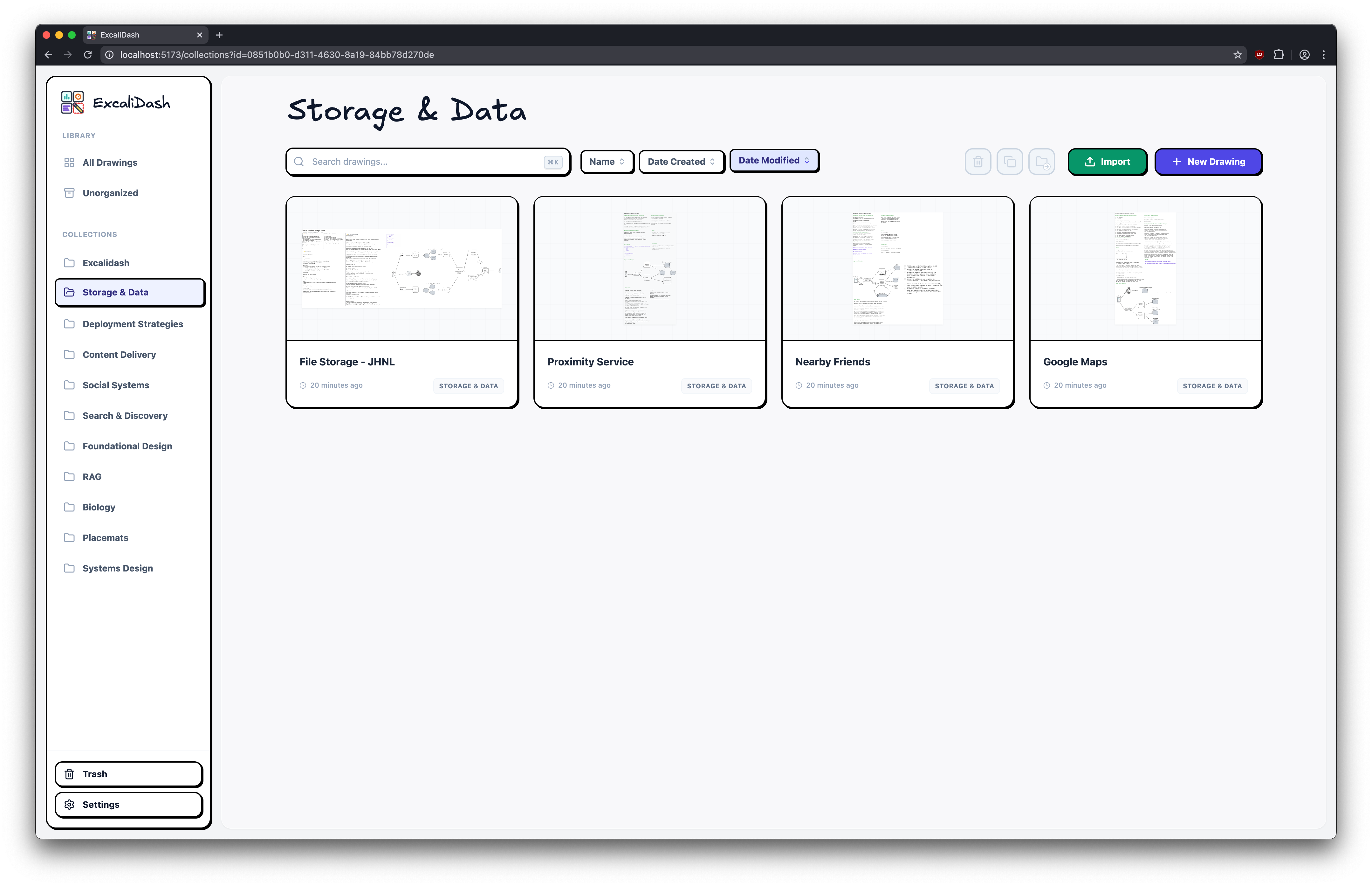

Drag and drop drawings into collections

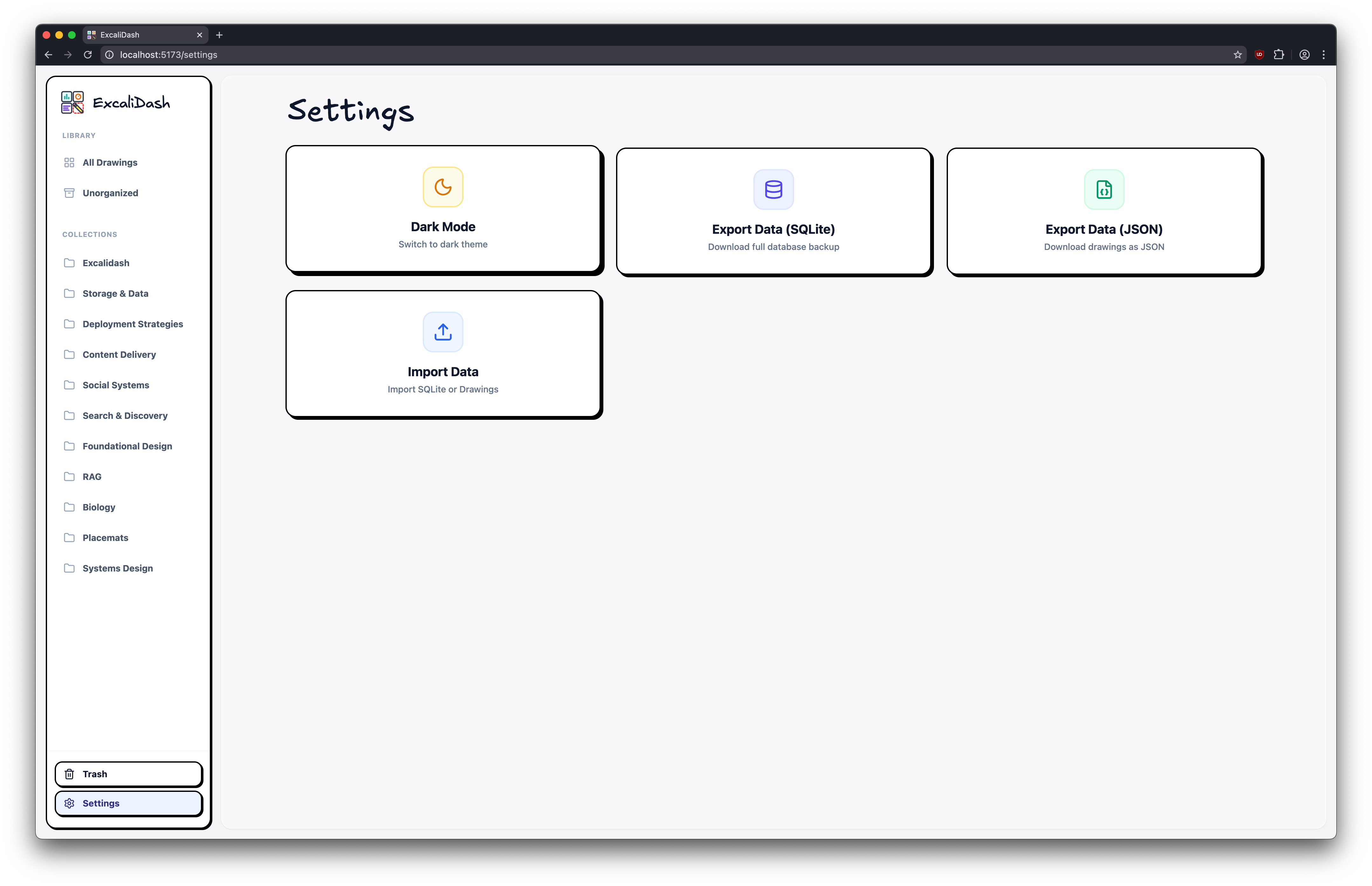

Export/import your drawings and databases for backup

Upgrading

See release notes for a specific release.

Installation

Caution

NOT for production use. While attempts have been made at hardening (XSS/dompurify, CORS, rate-limiting, sanitization), they are inadequate for public deployment. Do not expose any ports.

Caution

ExcaliDash is in BETA. Please backup your data regularly (e.g. with cron).

Docker Hub (Recommended)

Install Docker

# Download docker-compose.prod.yml
curl -OL https://raw.githubusercontent.com/ZimengXiong/ExcaliDash/refs/heads/main/docker-compose.prod.yml

# Pull images
docker compose -f docker-compose.prod.yml pull

# Run container
docker compose -f docker-compose.prod.yml up -d

# Access the frontend at localhost:6767

Docker Build

Install Docker

# Clone the repository (recommended)
git clone git@github.com:ZimengXiong/ExcaliDash.git

# or, clone with HTTPS
# git clone https://github.com/ZimengXiong/ExcaliDash.git

docker compose build
docker compose up -d

# Access the frontend at localhost:6767

Reverse Proxy / Traefik Setups (Docker)

When running ExcaliDash behind Traefik, Nginx, or another reverse proxy, configure both containers so that API + WebSocket calls resolve correctly:

• FRONTEND_URL (backend) must match the public URL that users hit (e.g. https://excalidash.example.com). This controls CORS and Socket.IO origin checks.
• BACKEND_URL (frontend) tells the Nginx container how to reach the backend from inside Docker/Kubernetes. Override it if your reverse proxy exposes the backend under a different hostname.

# docker-compose.yml example
backend:
  environment:
    - FRONTEND_URL=https://excalidash.example.com
frontend:
  environment:
    # For standard Docker Compose (default)
    # - BACKEND_URL=backend:8000
    # For Kubernetes, use the service DNS name:
    - BACKEND_URL=excalidash-backend.default.svc.cluster.local:8000

Multi-Container / Kubernetes Deployments

When running multiple backend replicas (e.g., Kubernetes, Docker Swarm, or load-balanced containers), you must set the CSRF_SECRET environment variable to the same value across all instances.

# Generate a secure secret
openssl rand -base64 32

# docker-compose.yml or k8s deployment
backend:
  environment:
    - CSRF_SECRET=your-generated-secret-here

Without this, each container generates its own ephemeral CSRF secret, causing token validation failures when requests are routed to different replicas. Single-container deployments work without this setting.

Development

Clone the Repository

# Clone the repository (recommended)
git clone git@github.com:ZimengXiong/ExcaliDash.git

# or, clone with HTTPS
# git clone https://github.com/ZimengXiong/ExcaliDash.git

Frontend

cd ExcaliDash/frontend
npm install

# Copy environment file and customize if needed
cp .env.example .env

npm run dev

Backend

cd ExcaliDash/backend
npm install

# Copy environment file and customize if needed
cp .env.example .env

# Generate Prisma client and setup database
npx prisma generate
npx prisma db push

npm run dev

Project Structure

ExcaliDash/
├── backend/                 # Node.js + Express + Prisma
│   ├── src/
│   │   └── index.ts        # Main server file
│   ├── prisma/
│   │   ├── schema.prisma   # Database schema
│   │   └── dev.db         # SQLite database
│   └── package.json
├── frontend/               # React + TypeScript + Vite
│   ├── src/
│   │   ├── components/     # React components
│   │   ├── pages/         # Page components
│   │   ├── hooks/         # Custom hooks
│   │   └── api/           # API client
│   └── package.json
└── README.md

Credits

• Example designs from:
  • https://github.com/Prakash-sa/system-design-ultimatum/tree/main
  • https://github.com/kitsteam/excalidraw-examples/tree/main
• The Amazing work of Excalidraw developers
